Short Description:

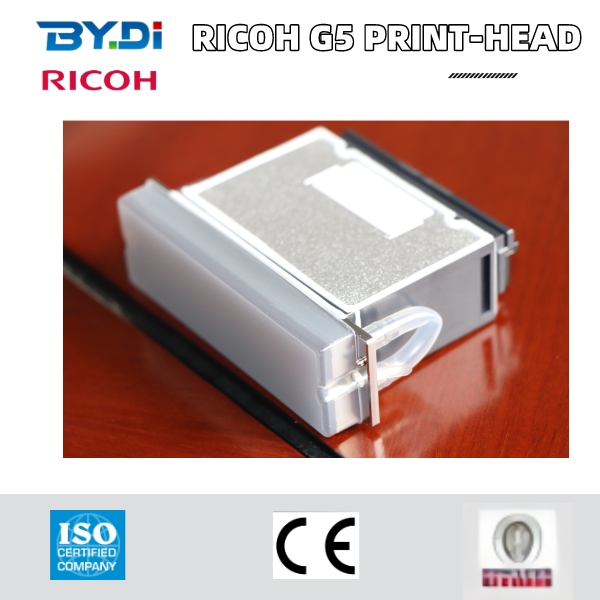

★This Ricoh G5 Printhead is suitable for a range of UV, Solvent and Aqueous based printers.

With 1,280 nozzles configured in 4 x 150dpi rows, this head achieves high-resolution 600dpi printing. Additionally, the ink paths are isolated, enabling a single head to jet up to four ink colors. It achieves excellent gray-scale rendering with up to 4 scales per dot. This head comes with hose barbs. The hose barbs can be removed if printhead with o-rings is needed. Ricoh P/N is N221345P.

★Product Specifications

  • Method:  Piston pusher with metallic diaphragm plate
  • Print Width: 54.1 mm (2.1″)
  • Number of nozzles: 1,280 (4 × 320 channels), staggered
  • Nozzle spacing (4 color printing): 1/150″(0.1693 mm)
  • Nozzle spacing (Row to row distance): 0.55 mm
  • Nozzle spacing (Upper and lower swath distance): 11.81mm
  • Max.number of color inks: 4 colors
  • Operating temperature range: Up to 60℃
  • Temperature control: Integrated heater and thermistor
  • Jetting frequency: Binary mode : 30kHz / Grey-scale mode : 20kHz
  • Drop volume: Binary mode: 7pl / Grey-scale mode : 7-35pl *depending on the ink
  • Viscosity range: 10-12 mPa•s
  • Surface tension: 28-35mN/m
  • Grey-scale: 4 levels
  • Total Length: 500 mm (standard) including cables
  • Dimensions: 89 x 25 x 69 mm (excluding cable)
  • Number of ink ports: 4 × dual ports
  • Alignment pin direction: Front (standard)
  • Ink compatibility: UV, Solvent, Aqueous, Others.
  • This printhead carries a manufacturer warranty.
  • Country of origin : Japan


Product Detail

Product Tags

In the rapidly evolving landscape of the Digital Textile Printing Machine Market, staying ahead of technological advancements is imperative for companies striving for excellence. Boyin, a pioneer in digital textile printing technology, is proud to introduce its latest innovation - the G5 Ricoh print-head for DTG printers. This leap forward signifies not just an upgrade but a revolution in digital textile printing, offering unparalleled precision, speed, and reliability.

  • Previous:
  • Next:


    • The previous iteration, featuring 18 Ricoh print-heads, set a high standard in the industry. However, the advent of the Ricoh G6 print-head marks a new era. The G5 Ricoh print-head embodies cutting-edge technology designed to meet the ever-growing demands of the Digital Textile Printing Machine Market. With this innovation, we promise an unmatched level of detail in prints, ensuring that every fabric piece stands out with vivid colors and sharp contrasts. The efficiency of the G5 Ricoh print-head also means higher throughput, reducing turnaround times and increasing productivity for your business. Embracing the G5 Ricoh print-head not only elevates your product offerings but also positions you as a leader in the competitive Digital Textile Printing Machine Market. The commitment to quality and the relentless pursuit of innovation are what set Boyin apart. By integrating the G5 Ricoh print-head into your DTG printing operations, you join a select group of forward-thinking companies leading the charge towards a more dynamic and vibrant future in textile printing. Let's redefine the possibilities of digital textile printing together, with Boyin's G5 Ricoh print-head leading the way.
